Limitless Servo Plate Plus

• Base plate Machined from 5mm 6082-T6 Aluminium
• Top plate Machined from 3mm Carbon Fiber
• Assembly weight - aprox 36g
• Fits to Limitless, Infraction and Felony
• Optional Receiver Extension Plate, 2mm carbon fiber


What's in the set:

• 1x 5mm Aluminium Base plate
• 1x 3mm Carbon Fiber Top plate
• 2x 5mm Aluminium sevo plate Spacer
• set of screws
• Optional Receiver Extension Plate - 2mm Carbon Fiber

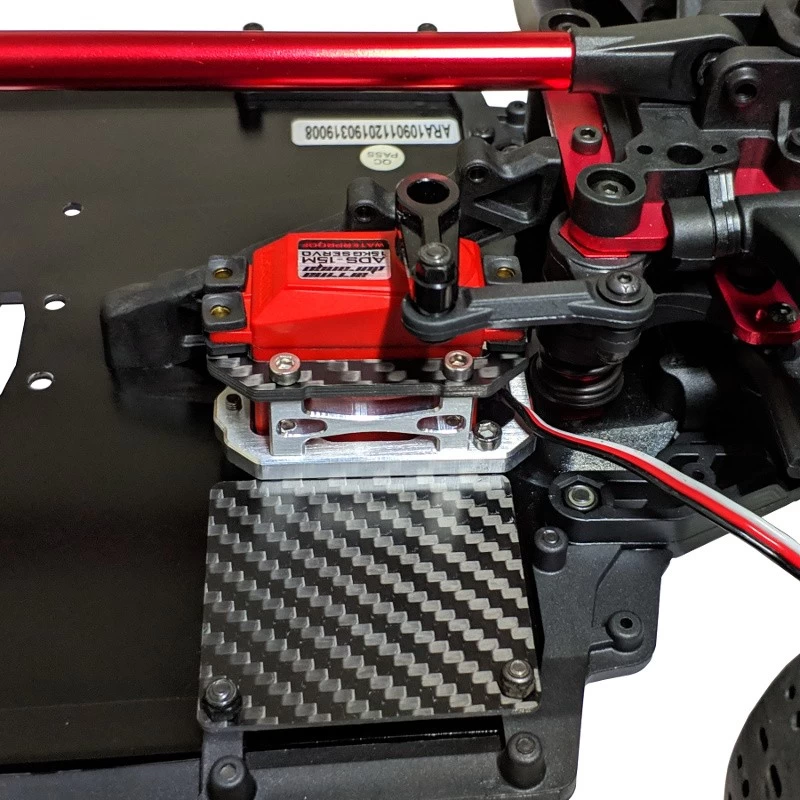

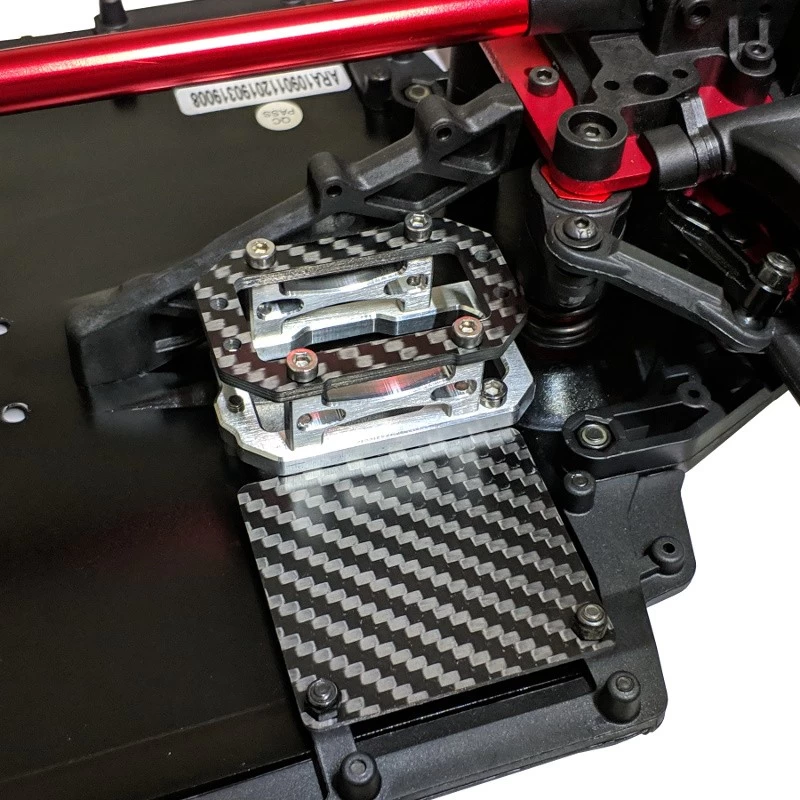

Picture shows Servo plate together with optional Receiver Extension plate

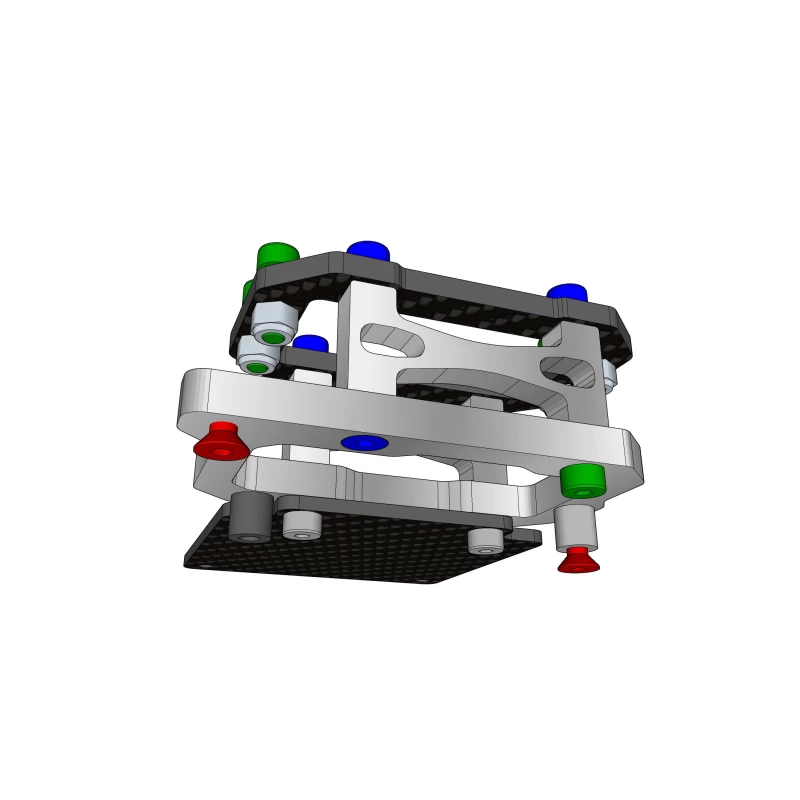

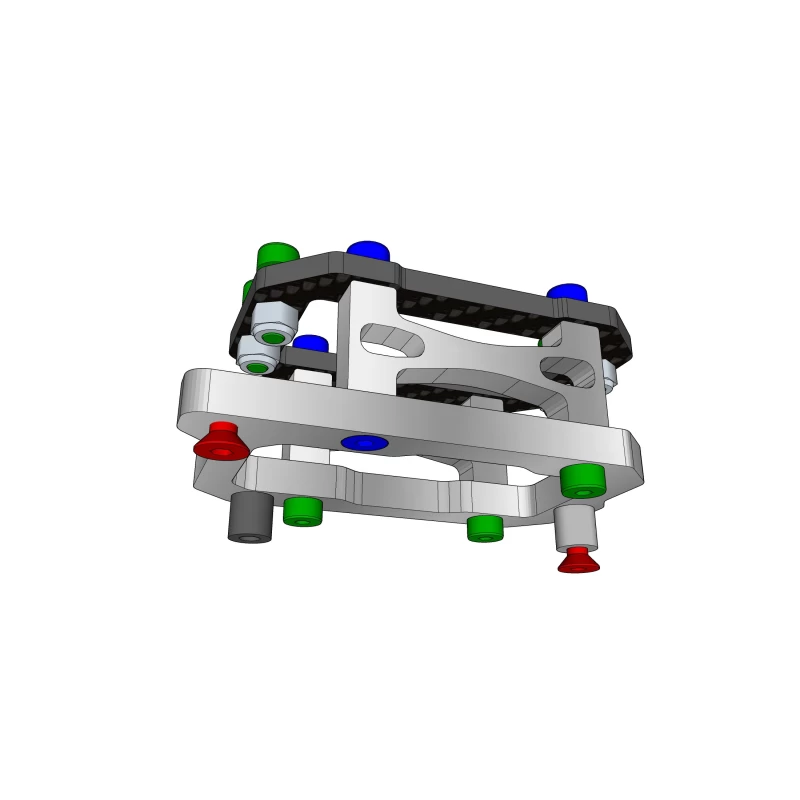

Assembly pictures:

• Green screws - M3x10mm
• Blue screws - M3x8mm
• Silver screws - M3x12mm (only with radio extension)
• red screws - use appropriate ones from existing tray
• silver spacer 6mm high, goes between chassis and Base plate on the rear side
